1-384*Voice RACK Mount Fiber Multiplexer

Type:FC2P-O256F4R2/FC2P-S256F4R2 Message

Description:4U rackmount multiplexer，1-384 * thelephone，4*100/1000 Mbps Ethernet，E1，Console or SNMP

Product Description

   1-384*Voice Fiber Multiplexer is designed based on FPGA. It is modular design the equipment is 4U chassis providing 1-384 phone 4 10/100M Fast Ethernet interface (wire speed 100M) or 4*10/100/1000M Gigabit Ethernet interface (wire speed 1000M) Or 4 physical isolation FE Ethernet interface (100M per wire speed independent bandwidth). But also 4 expansion of business interfaces such as RS232/485/422 asynchronous data /TTL signal/dry contact interface and other transmission channels the application is very flexible.

Functional Properties
◆   based on self -copyright  IC;
◆   Easy expansion increase the card can be easy to maintain change the card can be;

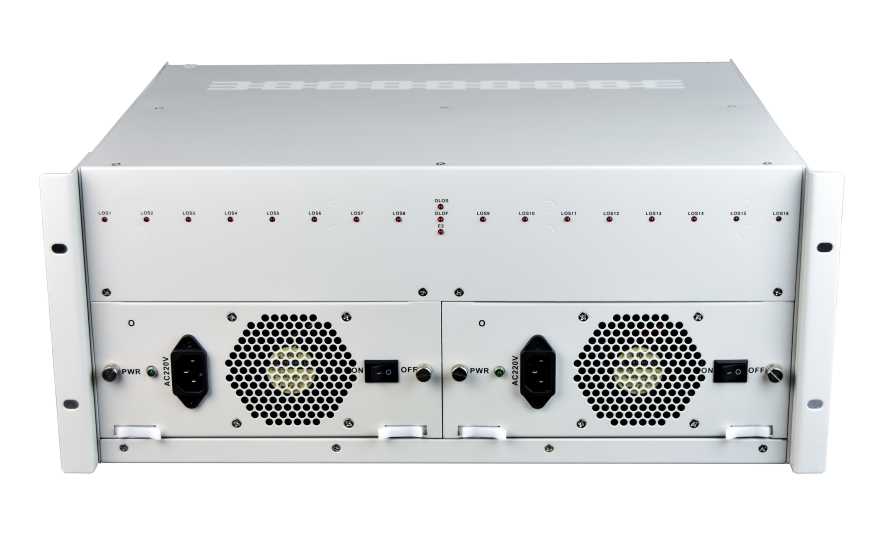

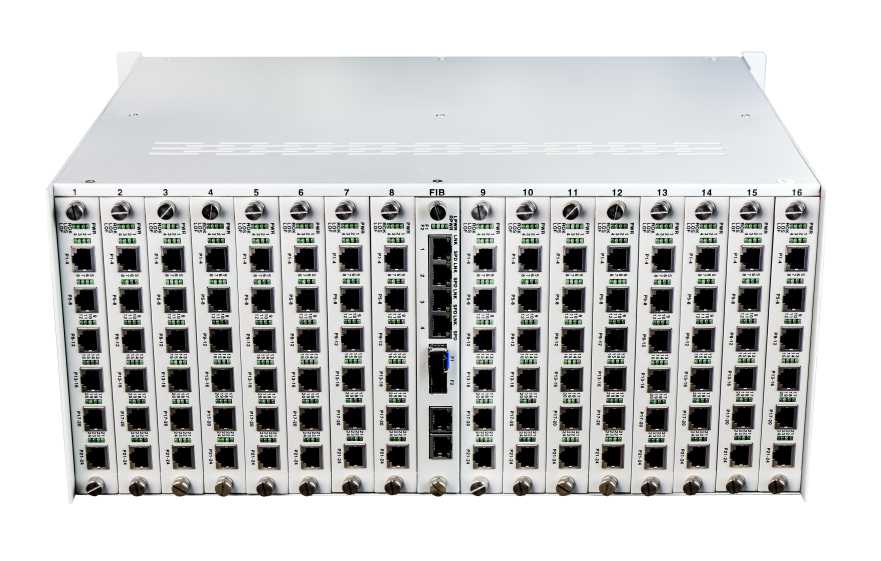

◆   Equipment for the 4U 19-inch chassis a total of a optical card (1+1 optional)  and 16 function cards the function card has 16*voice card/24*voice cards/8*2-4 wire E&M card/single E1 card/8*serial card+ 2 expansion interface such as RS232/485/422 asynchronous data/TTL interface/dry contact interface; the maximum configuration of this device is 384*voice if you want to configure the SNMP network management remove a piece of telephone card such as to configure 1*E1 board remove the 1 * voice card;
◆   384 Channel voice access support for caller ID / reverse polarity billing/fax function;
◆   Both sides of the device support FXO+FXS hybrid access;
◆   Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phone interfaceFXO port plug into PBXFXS port is connected to the user's telephone;
◆   4*10/100M Fast Ethernet interface(wire speed 100M) or 4*10/100/1000M Ethernet interface (wire speed 1000M) Or 4 physical isolation FE  interface (100M per wire speed independent bandwidth) is optional;
◆   Can command the remote interface loop back to maintain the circuit;
◆   No relay transmission distance of up to 2 to 120 km; to provide the main optical fiber interface and backup fiber interface dual optical port backup function to ensure that business never interrupted;
◆   Variety of power options: AC220V DC-48V etc .; support AC+DC; AC+AC;DC+DC and other dual power mode;
◆   DC-48V power  with automatic polarity detection installation without distinction between positive and negative.
◆   Telephone/Ethernet/Serial interface with lightning protection lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs open peak output voltage 6KV standard;



Technical Parameters

◆   Fiber

         Multi-mode Fiber

    50/125um 62.5/125um

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

◆   E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance) 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

◆   Ethernet interface(100/100M)

    Interface rate:              10/100 Mbps half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

◆   FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆   FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

 ◆   Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

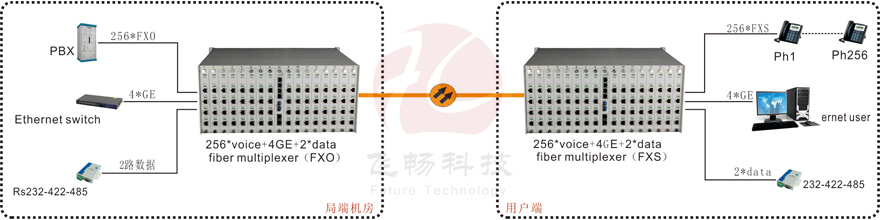

Application Scheme

Applications

DataSheet Download
