POE 4E1-4FE Media Converter

Type: Message

Description:

Product Description
              This interface converter is based on FPGA, using reverse direction multiplexing technology to bundle for multiple E1 circuits to transmit the Ethernet data of 4Channel 100BASE-TX. It can realize 1~4 E1 channel to convert between Ethernet optical interface. This device can transmit the transceiver signal point to point to Ethernet optical interface to make E1 channels interconnected with Ethernet optical interface. Single line rate is 1984Kbit / s, 4-way bandwidth of up 7936Kbit / s。
             4 IEEE802.3af Power over Ethernet ports to provide support through a wireless access point power Category 5 Ethernet cable (AP) or IP phones and other devices.
Functional Properties

Ø Based on proprietary integrated circuit;

Ø PSE power company for Ti chip, high stability;
Ø Ethernet port supports standard IEEE802.3af Power

Ø   To achieve Ethernet data transparent transmission in 1-4E1 circuits
Ø   Can realize the local and the remote device reset

Ø   Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering function
Ø   Single Channel lines rate is 1984Kbit/s, 4Channel Bandwidth is up to 7936Kbit/s
Ø   Channel 10M/100M Ethernet interface can isolate each other to realize communication independently

Ø   Ethernet interface supports10M/100M, half/full duplex auto- adaptable and AUTO-MDIX  (crossed line and

      straightly connected line self-adaptable )

Ø   CRC automatic alarm threshold can be set to isolate the poor quality transmission lines and cut off a single-direction. When 2M branch

      circuit onedirection error rate exceeds threshold, cutting off this direction the other direction is not affected; that is to say, both of the

      Ethernet directiontransmission can be asymmetric

Ø  Allow 4-Channel E1 transmission time delay difference 100ms. When the margin exceed the allowed range, the system can automatically

     stopon the E1 that time delay is too large to send data

Ø  E1 interface conform to ITU-T G.703, G.704 and G.823, not support the use of signal timeslot
Ø  E1 interface module with inter-set clock recovery circuit and HDB3 code circuit
Ø  Support E1 channel hot-plug in the device, and automatically detects the effective E1 channel and will not interrupt data transmission
Ø  Can support 1-4Channel E1 channel configuration, can automatically detect the number of E1 and select the E1 available;



Technical Parameters

u  E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance), 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

u Ethernet interface (10/100M)

    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u Ethernet POE characteristics
    PoE standard: IEEE 802.3af (port output power 15.4W)
    PoE type: the end of cross connection (optional for mid span)

    PoE port: port output power of 15.4W (IEEE802.3af)
    PoE: 1/2+, 3/6- wire line (optional for 4/5+, 7/8- line)
u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       216X140X31mm( WX DXH))

    Simple packaging : 274X193 X84mm ( WX DXH)

    Piece Weight: 1.3KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

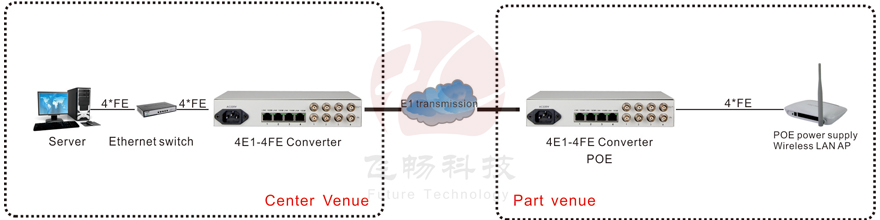

Application Scheme

Applications
